72V 20A 1X 9 Position Power Distribution Board 2 Inputs 2 x 9 Outputs for DC AC PCB016 Red
Product details
| Management number | 234202269 | Release Date | 2026/06/27 | List Price | US$6.00 | Model Number | 234202269 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

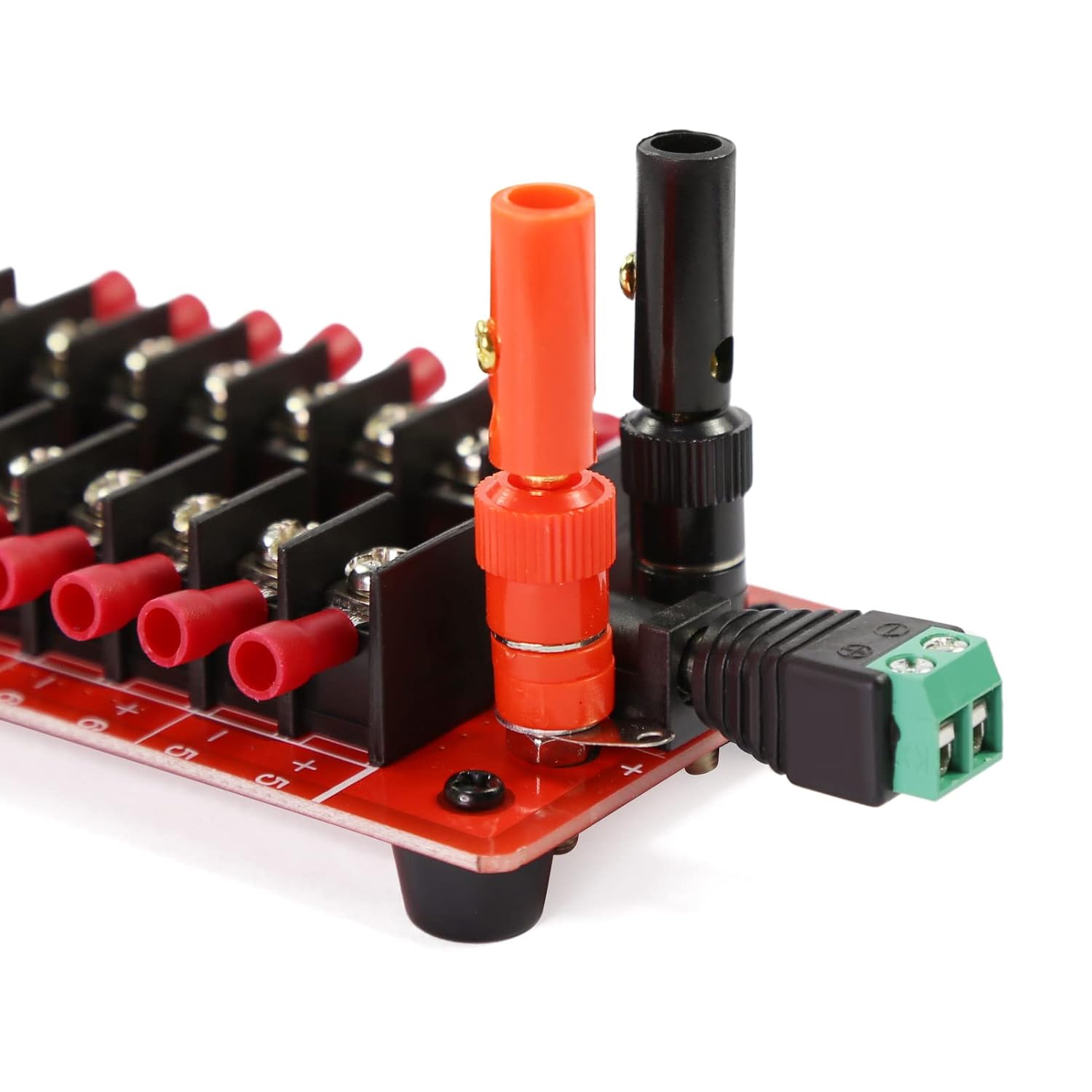

Features: Brand new and high quality. This distribution is the ideal solution for the model train to supply all lighting. There are 3 connectors for the input of voltage and 2 x 9 connectors for the outputs on the distributor. Two input types,if using DC socket input, the maximum voltage is 30V. the maximum current is 2A. 4 holes for mounting with wide spacers. The terminal board is ROHS compliant. Specifications: Brand:Evemodel. Dimensions: Approx.115mm or 4.52inch(L) x58mm or 2.28inch(W) x 33mm or 1.3inch(H). Maximum voltage: 72V AC or DC voltage. Total supply maximum current:20A (2-pole Power supply to terminal). Two input types,if using DC socket input, the maximum voltage is 30V. the maximum current is 2A. Wire Gauge:14-22AWG. Package included: 1x Power distribution board. 1x Red banana plug. 1x Black banana plug. 1x DC plug. 9x Red spade terminal connectors (support wire 16-22AWG). 9x Black spade terminal connectors (support wire 16-22AWG). 4x Rubber spacers. 4x M3x20 Metal Cross round-head self-tapping screws. 4x M3x10 Metal cross round-head bolts. 4x M3 Hex nuts (to use with round-head bolts).
- Two input types,if using DC socket input, the maximum voltage is 30V. the maximum current is 2A
- Total supply maximum current:20A (2-pole Power supply to terminal).
- Maximum voltage: 72V AC or DC voltage.
- Wire Gauge:14-22AWG.

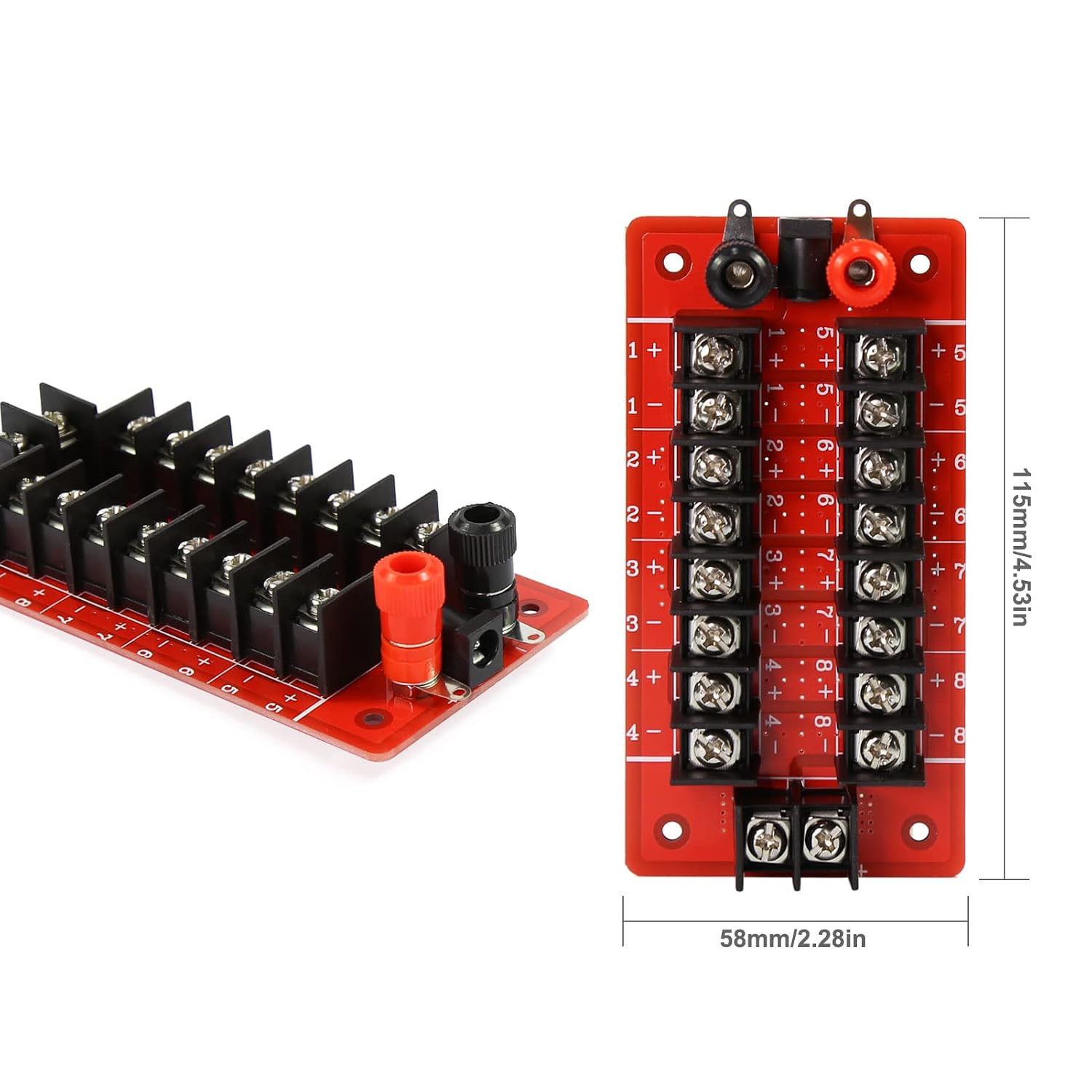

- Dimensions: Approx.115mm or 4.52inch(L) x58mm or 2.28inch(W) x 33mm or 1.3inch(H).
- California Prop 65 WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling.
| ASIN | B0BCYZMPYD |
|---|---|
| Color | Red |
| Gauge | 14.0 |
| Model | PCB016-1 |
| Pitch | 2.26 Inches |
| Voltage | 72 Volts |
| Brand Name | Evemodel |
| Part Number | PCB016-1 |
| Manufacturer | EVEMODEL |
| Mounting Type | Panel Mount |
| Connector Type | Screw |
| Current Rating | 20 Amps |
| Number Of Poles | 2 |
| Centerline Length | 4.52 Inches |
| Specification Met | RoHS |
| Number Of Contacts | 18 |
| Number of Positions | 9 |
| Item Dimensions W x H | 4.52"W x 1.3"H |
